Understanding the 408987400 Lower Engine Gasket Set
When managing the maintenance of a heavy-duty commercial diesel engine, most attention is given to the top end—the cylinder head, the valves, and the fuel injectors. However, the true foundation of engine survival lies at the bottom. A heavy-duty Cummins engine holds massive amounts of hot, pressurized engine oil in its lower sump. If this lower sealing boundary fails, the engine will suffer rapid oil starvation, leading to catastrophic bearing failure and total engine destruction.

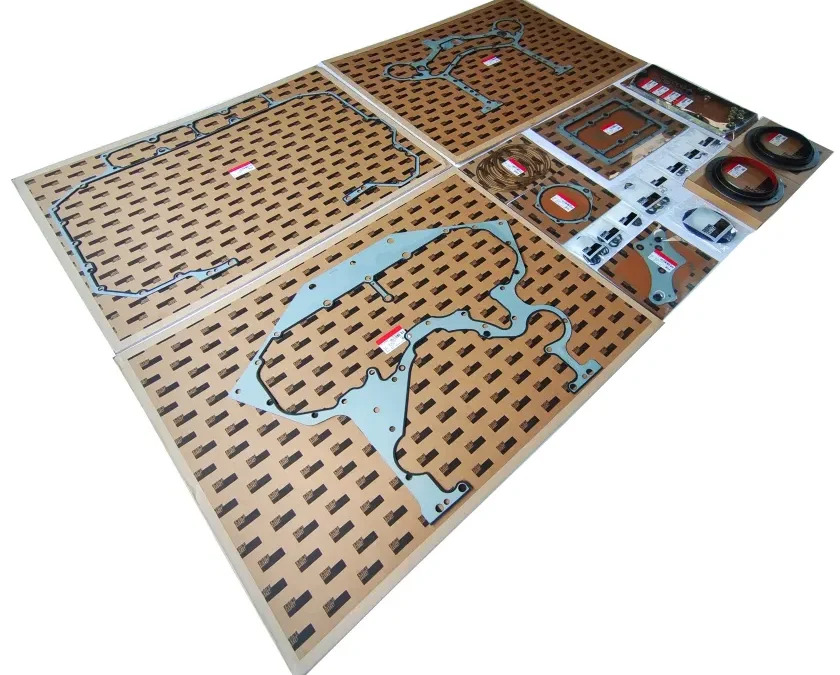

The 408987400 kit is the definitive lower engine gasket set designed specifically for heavy-duty Cummins engine platforms. This kit provides the complete Cummins lower-end sealing solution required during a major engine overhaul or when addressing severe lower block oil leaks.
Table of Contents
But why is the 408987400 kit so critical?
In a commercial operating environment, the lower engine block experiences continuous, violent stress. The oil pan must support the weight of gallons of oil, while the crankshaft spins at thousands of revolutions per minute, creating intense harmonic vibrations. Furthermore, the lower block is directly exposed to external road elements—freezing water, hot asphalt heat, and abrasive dirt. The 408987400 kit is engineered to withstand this chaotic environment, ensuring that the engine block and the oil pan remain perfectly sealed together under all extreme conditions.
If you are a fleet manager, a parts distributor, or a professional diesel mechanic, understanding the technical specifications of the 408987400 kit is essential. Using an inferior lower gasket set will result in immediate oil leaks, forcing you to pull the truck back into the shop, drain the oil, and repeat a very expensive labor process.
🔗 Elevate Your Complete Rebuild Strategy: The lower gasket set is just one half of the engine equation. If you are performing a full out-of-frame repair, understanding how the lower block connects with the upper block is vital. We highly recommend reviewing our comprehensive [Engine Overhaul Kit Guide: What Brand Should You Choose for Your Rebuild?] to ensure every component in your engine matches OEM tolerances.

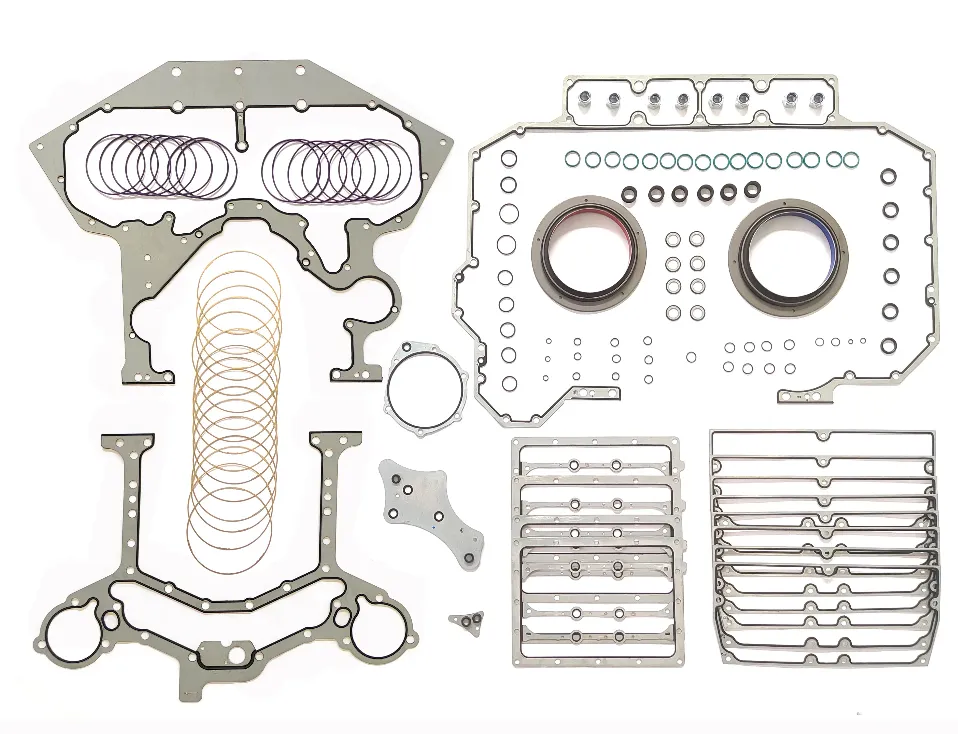

Component Breakdown of the 408987400 Kit
A premium 408987400 kit is not just a single piece of rubber; it is a highly engineered collection of distinct sealing components. Each piece in the SET, LOWER BLOCK GASKET, is designed with specific materials to perform a specific job in the harshest part of the engine.
Oil Pan Gaskets and Materials
The largest and most visible component in the 408987400 kit is the oil pan gasket. This part of the SET, LOWER BLOCK GASKET, has one of the hardest jobs in the entire heavy-duty diesel engine. It must bridge the gap between the heavy, vibrating cast-iron engine block and the large, often stamped-steel or aluminum oil pan.
In a premium 408987400 kit, the oil pan gasket is designed with advanced anti-corrosion and anti-vibration materials. Standard aftermarket gaskets often use basic rubber that hardens and cracks when exposed to hot diesel oil. However, high-quality Cummins lower-end sealing solutions utilize metal-reinforced elastomer cores.
This means there is a rigid steel frame hidden inside the rubber gasket. This rigid steel skeleton prevents the gasket from being squeezed out or deformed when the mechanic tightens the bolts. The outer rubber coating (typically advanced FKM or high-grade silicone) provides excellent resistance against modern synthetic oils and highly acidic chemical blow-by. Furthermore, this thick, flexible material is engineered to absorb the deep harmonic vibrations of the diesel engine, ensuring the SET, LOWER BLOCK GASKET never shakes loose during thousands of hours of highway driving or heavy equipment operation.
Front and Rear Crankshaft Seals
Another critical component found within the 408987400 kit family of seals is the crankshaft seals. Whether you are dealing with a standard lower block or a massive ISX lower block seal, the technology required here is highly advanced.
The crankshaft exits the front and the rear of the engine block, spinning constantly to deliver power to the transmission and engine accessories. The ISX lower block seal must prevent hot oil from leaking out around this rapidly spinning shaft, while simultaneously preventing outside dust and water from getting inside the engine.
To achieve this, premium crankshaft seals in the 408987400 kit utilize PTFE (Polytetrafluoroethylene) dust lip technology. PTFE is a remarkably tough, low-friction material. Unlike traditional rubber seals that can melt or wear grooves into the metal crankshaft, a PTFE ISX lower block seal glides smoothly over the spinning metal. It generates very little friction, which drastically reduces heat and extends the lifespan of both the seal and the crankshaft. The advanced dust lip design acts as an impenetrable shield, sweeping away dirt and road grime before it can damage the primary oil sealing lip.
Installation Tolerances and Torque Specifications
Having the best 408987400 kit in the world will not save your engine if it is installed incorrectly. Lower block sealing requires absolute precision. Many mechanics rush this process, leading to immediate warranty claims and severe oil drips.
1. Absolute Surface Preparation
Before opening your new 408987400 kit, the engine block and the oil pan mating surfaces must be surgically clean. You must remove all traces of old gaskets, oil sludge, and factory sealants. Use a chemical gasket remover and a plastic scraper. Never use aggressive metal wire wheels or abrasive grinding pads on the engine block. These tools will scratch the metal, creating deep grooves that oil will easily flow through, permanently ruining your Cummins lower-end sealing capability.
2. The Truth About RTV Silicone
In most modern heavy-duty applications, a premium SET, LOWER BLOCK GASKET is designed to be installed "dry" (without liquid sealant). However, the factory maintenance manual dictates that RTV (Room Temperature Vulcanizing) silicone sealant must be used at very specific joint locations—specifically where the front gear cover meets the main engine block, and where the rear flywheel housing joins the block.
When applying RTV alongside your 408987400 kit, thickness matters. Apply a continuous, perfectly even bead no thicker than 2 to 3 millimeters (about the size of a small bead of toothpaste). If you apply too much silicone, it will squeeze into the oil pan, break off, and permanently block the oil pickup tube, destroying the engine.
3. Oil Pan Gasket Torque Specs
Adhering to the exact oil pan gasket torque specs is the most important step of the entire job. Heavy-duty oil pans are large. If you tighten one side completely before the other, the pan will warp and bend.
You must follow a strict crossing sequence:
- Step 1: Install all bolts by hand until they are finger-tight. Ensure the 408987400 kit gasket is perfectly aligned with the bolt holes.
- Step 2: Starting from the center of the oil pan, tighten the bolts in a crisscross, alternating pattern (moving from the center outwards to the front and rear). Tighten them to roughly half of the final required torque.
- Step 3: Repeat the same center-outward crisscross sequence, bringing all bolts to the final factory oil pan gasket torque specs (usually around 24 to 28 Nm, or 18 to 21 lb-ft, depending on your specific Cummins engine manual).
Using a calibrated digital torque wrench is mandatory. Guessing the pressure by hand is the fastest way to ruin a brand-new 408987400 kit.
What the Industry Experts Say
When investigating why lower block seals fail, the data points away from the manufacturing line and points directly at the installation bay.
"I see it every single week. A truck comes back into the shop with oil dripping from the lower block just two weeks after a major rebuild. The customer blames the 408987400 kit, claiming it was a cheap gasket. But when we drop the pan, we find the truth. Lower sealing failures are almost never because of gasket quality; they happen because of contact surface oil residue. If a mechanic doesn't use brake cleaner to completely dry the metal mating surfaces before laying the gasket down, the new rubber will simply slip and slide out of place as soon as you apply torque to the bolts. A wet surface destroys the seal."
Senior Cummins Rebuild Technician - James L.
This expert insight highlights a critical reality in commercial diesel repair. You must ensure the environment is perfectly dry before installing your Cummins lower-end sealing components.
⚠️ Critical Warning
Do not use power tools, impact wrenches, or pneumatic air guns to run down oil pan bolts when installing your 408987400 kit. A heavy-duty oil pan may look tough, but the mounting flange is highly susceptible to bending. Power tools deliver violent, uneven pressure in a fraction of a second. This will instantly distort the pan flange, crush the metal core of the gasket, and physically split the rubber. Always thread the bolts by hand, and finish with a manual hand-held torque wrench set to the proper oil pan gasket torque specs.
Source the Premium 408987400 Kit from VP GASKET
When rebuilding a commercial heavy-duty engine, you cannot afford to take risks with generic, unverified aftermarket parts. If you want to ensure total operational security, you need a manufacturing partner who understands the extreme demands of industrial diesel power.
VP GASKET is your premier factory-direct source for the 408987400 kit. We specialize in engineering and producing exact-fit replacement components that perfectly match original OEM data and dimensions.
Why Global Distributors and Fleet Managers Choose VP GASKET:
- OEM Material Matching: Our lower block gaskets utilize the exact metal-reinforced elastomer technology required to survive high-vibration commercial environments. We do not use cheap, easily deformed rubber.
- Precision PTFE Technology: Our crankshaft seals feature advanced PTFE dust lips for ultimate wear resistance, providing a perfect ISX lower block seal that outlasts standard parts.
- Factory-Direct Pricing: By bypassing the heavy markups of traditional trading companies and dealer networks, we lower your procurement costs while elevating your parts quality.
- Bulk Inventory and Fast Shipping: We maintain deep inventory levels of the 408987400 kit and other heavy-duty Cummins lower-end sealing sets. Whether you need a single kit for an emergency rebuild or a bulk container order for your international distribution network, VP GASKET delivers.
We provide the sealing solutions that keep global logistics, mining operations, and construction fleets moving forward without the fear of massive oil leaks.
80%
of lower block oil leaks after a rebuild occur because the RTV silicone was not allowed to cure properly before introducing hot engine oil. When you complete the installation of your SET, LOWER BLOCK GASKET, the engine is not immediately ready to run. Liquid RTV silicone requires time to vulcanize and harden into a solid rubber seal. If you immediately pour 10 gallons of engine oil into the block and start the truck, the hot oil will wash away the soft, uncured silicone, creating an immediate leak pathway. You must let the engine sit dry for the duration recommended by the silicone manufacturer (usually 12 to 24 hours) before adding engine fluids.
Speak to Our Diesel Engine Parts Specialists
Are you tired of dealing with inferior gaskets that lead to costly callbacks? Do you want to upgrade your parts inventory with reliable, lab-tested sealing technology?
Need exact-fit 408987400 gasket sets for your fleet?
Our dedicated engineering and sales team is standing by to assist you. We can provide immediate technical support, exact OEM cross-reference checks, and aggressive wholesale pricing for your B2B requirements. Stop leaks before they start by partnering with a true manufacturing leader.
FAQ
What exactly is included in the 408987400 kit?
The 408987400 kit is a comprehensive SET, LOWER BLOCK GASKET. It typically includes the heavy-duty oil pan gasket, necessary O-rings for the oil pickup tube and fluid passages, drain plug sealing washers, and often the front and rear crankshaft seals required for a complete lower engine seal.
Can I reuse my old oil pan gasket if it looks okay?
No. Never reuse an old oil pan gasket on a heavy-duty diesel engine. Once a gasket has been compressed and exposed to thousands of hours of heat and oil chemistry, it permanently loses its elastic memory. Reusing it guarantees a severe oil leak and will double your labor costs. Always install a fresh 408987400 kit.
Do I need to apply liquid silicone sealant to the entire oil pan gasket?
No. Premium lower block gaskets are designed to be installed dry to ensure proper compression. You should only apply a small 2-3mm bead of RTV silicone at the specific "T-joints" where the front gear cover and the rear flywheel housing intersect with the main engine block.
Why is my new lower block gasket leaking immediately after installation?
An immediate leak is almost always caused by an installation error. The most common reasons include failing to clean oil residue off the mating surfaces (causing the gasket to slip), using an impact wrench instead of following the strict oil pan gasket torque specs, or starting the engine before the RTV silicone at the T-joints had time to fully cure.
Is a PTFE crankshaft seal better than a standard rubber seal?
Yes. In heavy-duty applications like the ISX lower block seal, PTFE (Polytetrafluoroethylene) is vastly superior. It creates significantly less friction against the spinning crankshaft, which reduces heat. PTFE also resists chemical degradation from modern synthetic diesel oils much better than traditional rubber, leading to a much longer operational lifespan.
