Cummins gasket kit contents vary by kit part number, engine configuration and supplier. An upper engine gasket kit generally focuses on top-end sealing, a lower kit on crankcase and lower-engine joints, and an overhaul gasket set on a broader repair scope. None of those names guarantees a particular seal, head bolt or accessory gasket is in the box.
Use this guide to compare upper, lower and full gasket sets before ordering. Whether you are looking for a Cummins 4BT gasket kit, a 6BT gasket set or an ISX gasket kit, match the itemized bill of materials (BOM) to the engine and the joints your repair will disturb.
| Kit description | Usual planning scope | What still needs confirmation |
|---|---|---|
| Upper engine gasket kit | Cylinder-head and related top-end sealing | Head gasket, manifold seals, valve-cover seals and other required items must be listed individually. |
| Lower engine gasket kit | Oil-pan, crankcase and cover sealing | Check crankshaft seals, housing gaskets and accessory seals rather than assuming inclusion. |
| Full / overhaul gasket set | A broader combination of engine sealing parts | Compare the complete BOM; coverage and overlap with separate upper/lower kits vary. |
The examples below are purchasing checkpoints, not a packing list for a specific VPGASKET product. Request the current contents and quantities for the kit you intend to buy.

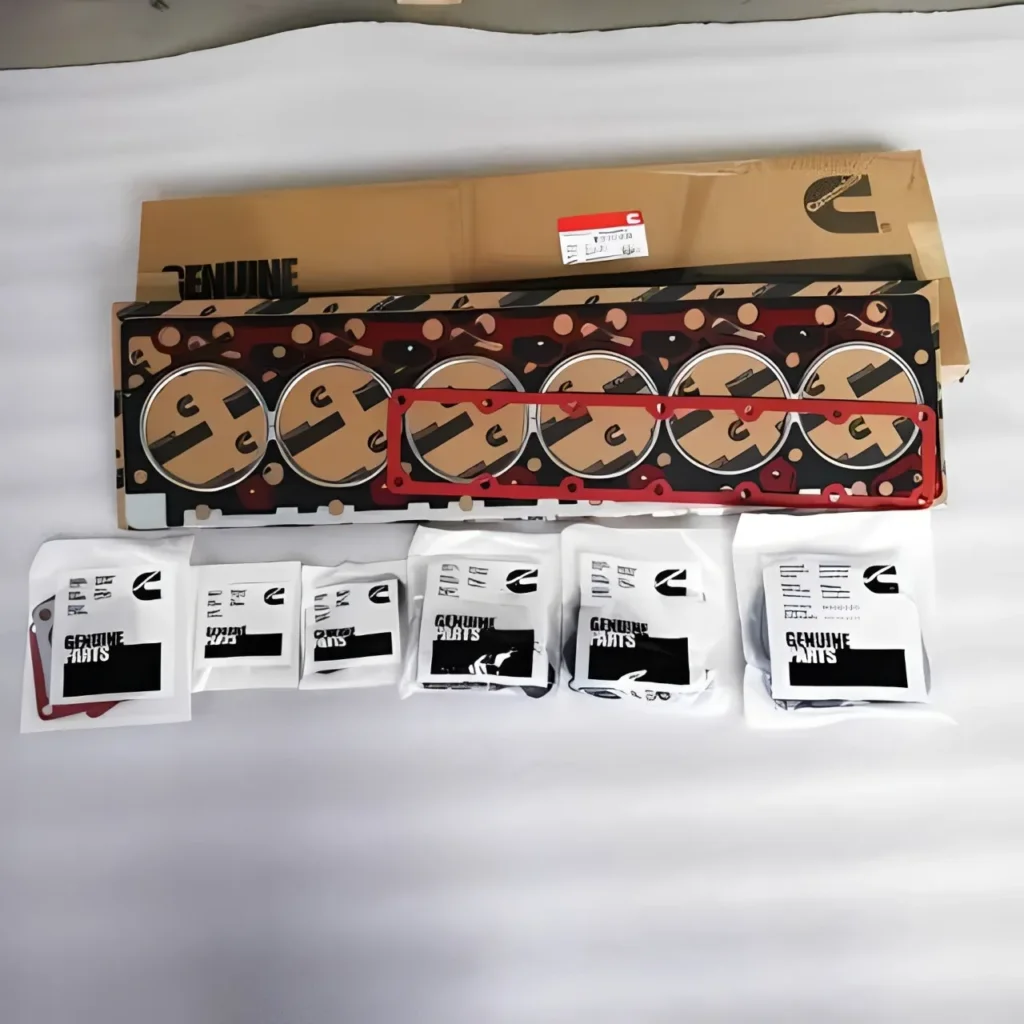

Upper Engine Gasket Kit: What to Check
An upper gasket kit is a starting point for planning cylinder-head work. Listings may also use “upper gasket set” or “head gasket set.” Check how the supplier defines the set: a single head gasket is not the same purchase as a kit containing several sealing components.
| Item to check | Question for the supplier |
|---|---|
| Cylinder head gasket | Is it included, and which part reference and specification apply? |
| Intake and exhaust manifold gaskets | Are all interfaces disturbed by this repair covered, with the correct quantities? |
| Valve-cover seals and grommets | Are these separate items or part of the quoted kit? |
| Valve-stem and injector seals | Which are included for this engine and repair scope? |
| Thermostat, turbocharger and EGR interfaces | Are the required seals included or quoted separately? |
Do not infer MLS, composite, FKM or another material from the kit name. Obtain the specification for the actual component. Also check whether additional parts are required by the applicable service procedure.
Lower Engine Gasket Kit: What to Check
A lower engine gasket kit may group sealing parts for the oil pan, front or rear covers and related lower-engine interfaces. A listing for a Cummins 6BT oil pan gasket describes a narrower item than a lower gasket kit; compare the required repair parts before choosing between them.
| Item to check | Why it matters |
|---|---|
| Oil-pan gasket and oil-pickup seals | Confirm the pan arrangement and any pickup seals disturbed by the work. |

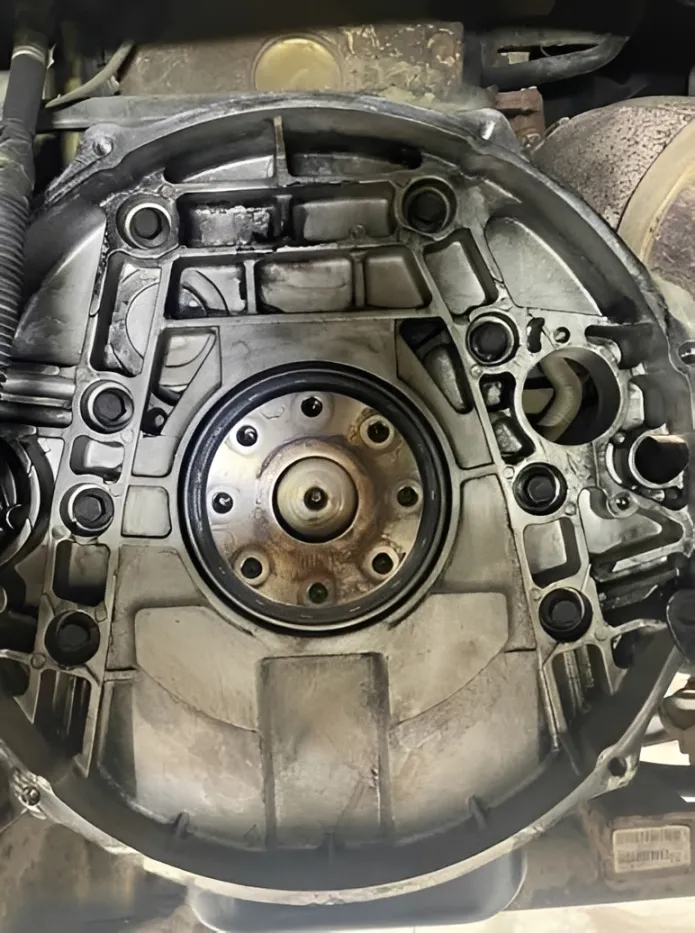

| Front and rear crankshaft seals | Confirm whether each is included and whether any sleeve or installation aid is separate. |
| Gear and rear housing gaskets | Identify the specific housings being opened. |
| Oil-cooler, filter-housing and pump seals | These may require separate references or sub-kits. |
| Accessory-drive seals | Check the installed components rather than the engine family name alone. |
Installation requirements differ by seal design. Follow the instructions for the exact seal and engine; do not apply one lubrication, sealant or installation rule to every crankshaft seal.

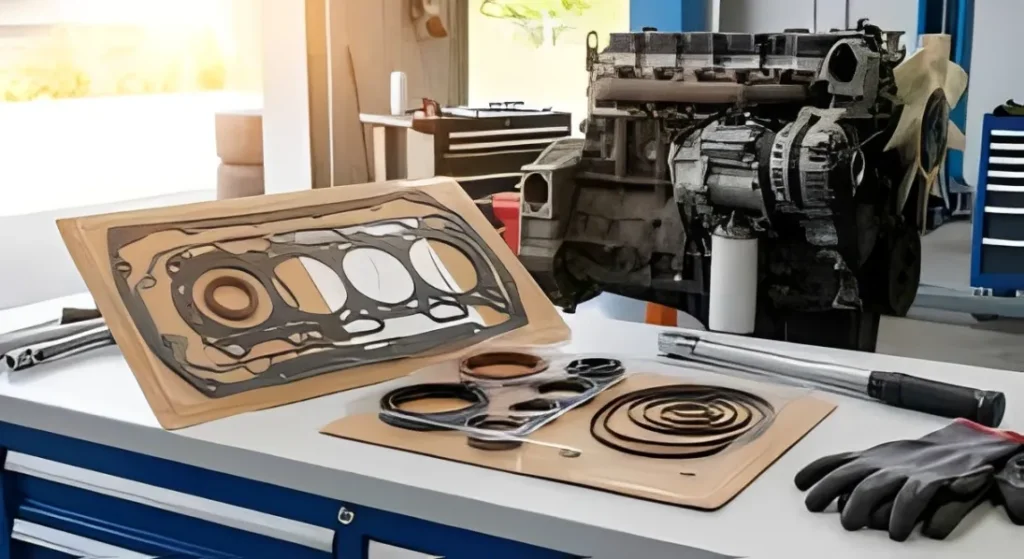

Full Gasket Set vs Engine Rebuild Kit
A full engine gasket set is intended to cover a broader group of sealing joints. It is not automatically identical to an upper kit plus a lower kit. Compare the lists for missing items, duplicates and separately supplied accessory seals.
An engine overhaul gasket kit also differs from an engine rebuild kit. For example, Cummins describes its MidRange overhaul kits as including components such as pistons, rings, bearings and gaskets, with liners where applicable. That broader package is not a contents list for a gasket-only product.
When comparing an “inframe kit,” “full overhaul kit” or “full gasket set,” ask for the actual contents. For VPGASKET gasket enquiries, confirm the sealing components being quoted and identify any additional parts needed for the repair separately.
Parts You Should Not Assume Are Included
Ask for an explicit included / not included list for head bolts or studs, injector seals, crankshaft seals, wear sleeves, turbocharger seals, oil-cooler seals and accessory gaskets. Do not assume that “full” includes every part attached to the engine.

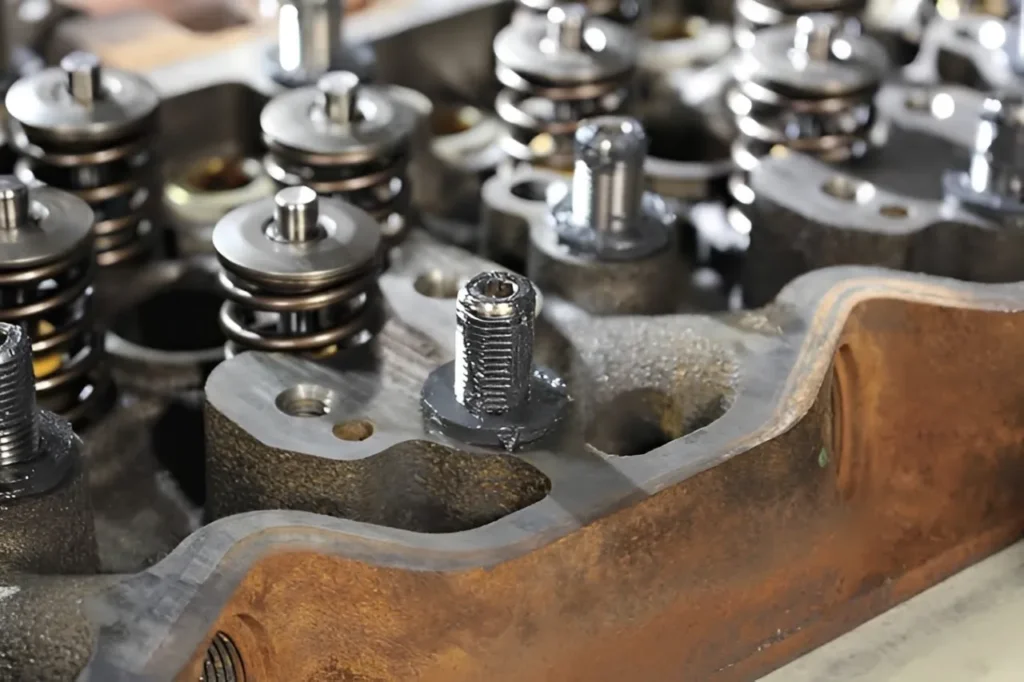

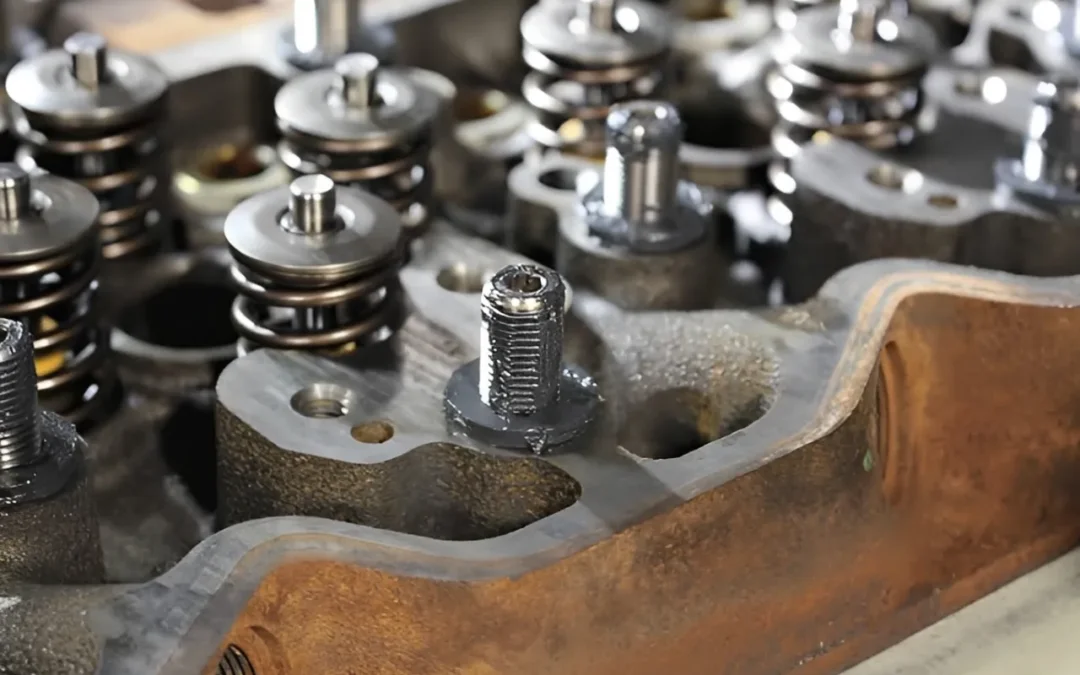

Head-bolt inspection, reuse or replacement requirements must come from the applicable service information. A gasket-kit listing does not establish whether a particular fastener can be reused. Likewise, a kit photograph cannot confirm material grade, dimensions or every quantity.
Match the Gasket Set to Your Repair
Start with the planned work, not just a symptom. An oil or coolant leak must be diagnosed before selecting a repair package. List the joints to be opened, then compare those requirements with the proposed kit.
| Confirmed repair scope | Sets or parts to compare | Check before ordering |
|---|---|---|
| Cylinder-head work | Upper / head gasket set plus any additional seals | Head reference, disturbed manifold and fuel-system interfaces, service-required parts. |
| Oil-pan work only | Oil-pan gasket and related individual seals versus a lower kit | Whether the broader kit is actually needed. |
| Front or rear housing work | Specific cover/housing seals versus a lower kit | Installed housing and shaft-seal configuration. |
| Broader engine teardown | Full gasket set versus separate sets and sub-kits | Item-by-item coverage and total quoted cost, including missing parts. |
For 4BT and 6BT sourcing, browse Cummins B Series gasket kits. For other engine families, use the Cummins gasket kit range. These are product starting points, not a declaration that every listed kit fits every engine in that family.
Before selecting a part number, use our Cummins gasket identification guide for ESN and CPL checks to organize the engine information.
Compare Kit Contents Before Ordering
Send the same requirements to each supplier so the quotations describe comparable packages. Keep the approved BOM with the order and use it again at receiving.
| Record | Details to request or provide |
|---|---|
| Engine identity | Engine model, ESN, CPL where available, application and nameplate photo. |
| Repair scope | The joints being opened and any known component changes. |
| Kit reference | Quoted supplier part number and documented OE reference, if applicable. |
| Contents | Item descriptions, component references, quantities and explicit exclusions. |
| Specifications | Required dimensions and materials for the actual components, with supporting information where needed. |
| Commercial terms | Number of kits, price basis, packing, availability and delivery destination. |
| Receiving check | Check supplied items against the approved list before starting the repair. |
Enquiry template: Engine model: __. ESN: __. CPL, if available: __. Equipment/application: __. Required kit or reference: __. Repair scope: __. Known modifications: __. Quantity: __. Destination: __. Please confirm the itemized contents, exclusions and any unresolved fitment questions.
Frequently Asked Questions
Does a full gasket kit include front and rear oil seals?
Only if those seals are listed in the specific kit BOM. Confirm both references and quantities, and ask whether sleeves or installation aids are separate.
Are head bolts included in a head gasket set?
Do not assume they are included. Request written confirmation of the quoted contents and follow the engine service requirements for bolt inspection or replacement.
Can upper and lower gasket kits replace a full set?
They may cover the required work, but the combination must be compared item by item with your repair list. It is not a universal equation, and neither option is always cheaper.
Is a 5.9 Cummins gasket kit suitable for every 5.9L engine?
The displacement alone does not establish fitment. Identify the engine version, application and current component requirements before accepting a kit reference.
What should I send to get the right kit contents?
Send your engine identifiers, part reference if known, repair scope, quantity and destination. Ask VPGASKET to review your gasket kit requirements and confirm the proposed contents and any additional seals before ordering.
