Meet the 800-Ton Giant of Open-Pit Mining
Let me ask you a quick question: why do you think ultra-large mining excavators are so incredibly expensive?
Most people guess it is because of the massive amount of steel, the thousands of horsepower, or the huge pile of dirt they can move in a single scoop. But if you ask a mine manager, they know the real reason right away. Machines like the Liebherr R9800 carry a high price tag because if they stop working, the entire mine slows down with them.
When an excavator of this size breaks down, the waiting haul trucks park, the rock crushers run empty, and the processing plants lose money. In a large open-pit mine, just one hour of downtime can cost hundreds of thousands of dollars.
The Liebherr R9800 was built specifically to make sure that does not happen.
Unlike a normal excavator you might see on a city construction site, the Liebherr R 9800 mining excavator is made for the toughest jobs on earth. Its main goal is to scoop up hard, heavy ore right after it has been blasted. Standing almost as tall as a four-story building, the R9800 completely takes over the work site. Even giant 300-ton haul trucks look small next to it.
But the real secret to its success is its freedom to move. Open-pit mines are always growing, and loading spots change constantly. While electric rope shovels are stuck in one area, hydraulic excavators can easily move to where the rock is. That flexibility is exactly why the Liebherr R9800 is one of the most trusted mining machines in the world.

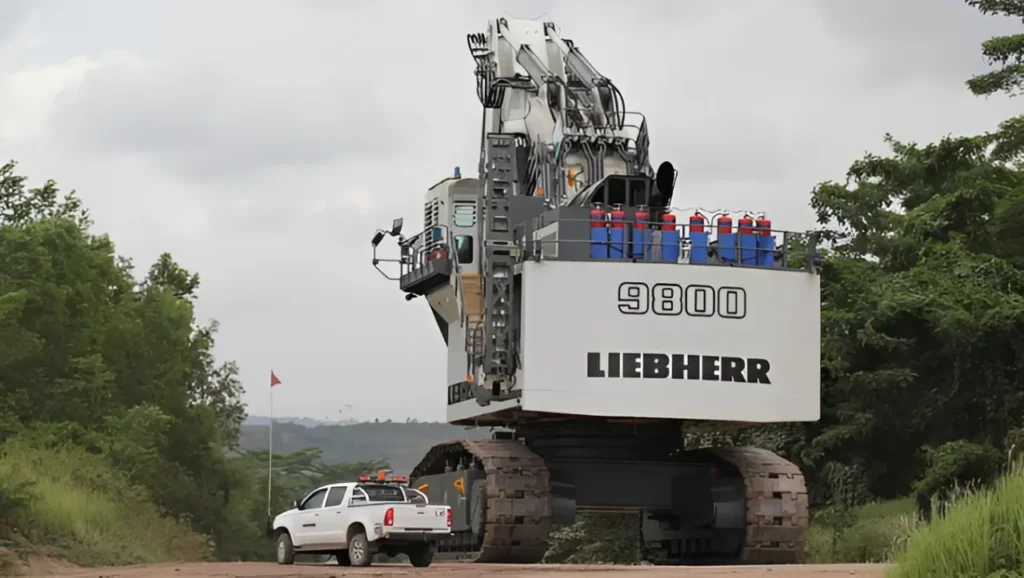

Core Liebherr R9800 Specs: Size, Weight, and Dimensions
Liebherr built this machine to meet the mining world's need for faster loading and bigger truck fleets. When you look at the raw data, it is truly hard to believe. An 800-ton machine weighs about the same as two fully loaded commercial passenger jets!
Liebherr R9800 General Dimensions and Weight Data
| Specification Category | Exact Measurement / Data | What it Means for the Mine |
| Operating Weight (Face Shovel) | Approx. 810 Tons | Provides massive stability when digging hard rock. |
| Operating Weight (Backhoe) | Approx. 800 Tons | Perfect balance for deep trenching and loading below grade. |
| Overall Width (Track to Track) | 8.80 Meters (28 ft 10 in) | Requires extra-wide haul roads for moving across the mine. |
| Overall Height (To Cab Top) | 9.91 Meters (32 ft 6 in) | Gives the operator a perfect, high-angle view into haul trucks. |
| Tail Swing Radius | 7.14 Meters (23 ft 5 in) | Needs a massive safety zone to rotate freely without hitting trucks. |

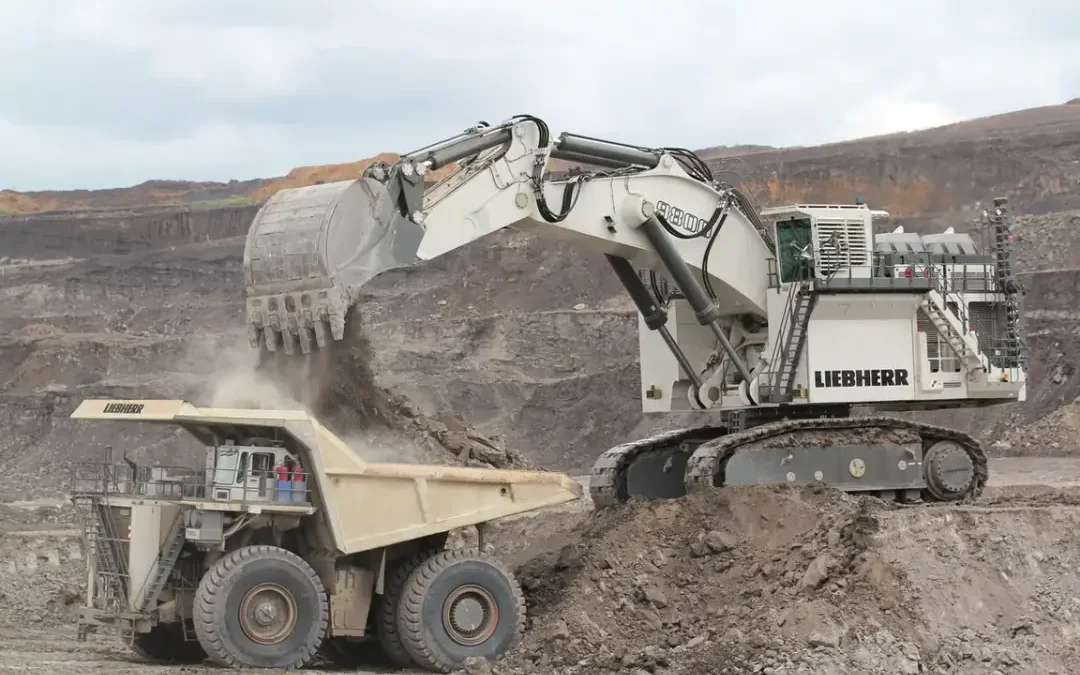

Analyzing the Liebherr R9800 Bucket Capacity and Loading Speed
When we talk about the Liebherr R9800 bucket capacity, we are not just bragging about size. In the mining business, bucket size directly equals loading speed.
Bucket Capacity and Truck Matching Matrix
| Bucket Setup | Capacity (Cubic Meters) | Estimated Tons Per Scoop | Perfect Haul Truck Match | Scoops to Fill Truck |
| Standard Heavy Rock Bucket | 42.0 m³ | ~75 Tons | 220-Ton to 240-Ton Truck | 3 Scoops |
| Expanded Coal/Light Material | 47.5 m³ | ~85 Tons | 300-Ton Truck | 3.5 to 4 Scoops |
| Maximum Capacity (Custom) | Up to 52.0 m³ | Varies by density | 360-Ton Truck (e.g., T282C) | 4 to 5 Scoops |
Matching the bucket to the truck is a huge deal. Every extra scoop takes time, burns fuel, creates traffic jams, and hurts the mine's overall efficiency. By dropping the load time from six scoops down to just three scoops, the R9800 completes a loading cycle in under 60 seconds. Running 24 hours a day, it can move a massive 50,000 to 60,000 cubic meters of material.
Powerful Engine Choices: The Heart of the Liebherr R 9800
To move that much rock, the excavator needs a massive heartbeat. The machine puts out nearly 3000 kW of power, which is about 4000 horsepower. Imagine 30 family cars all flooring the gas pedal at the same time!
Cummins 16V QSK60 vs. MTU 12V4000 Series
Mines can choose between two massive diesel setups, or even an electric version, depending on their local fuel, parts availability, and mine setup.
Liebherr R9800 Engine Power Output Options
| Engine Option | Cylinder Setup | Total Power Output | Fuel Tank Capacity | Best Use Case |
| Cummins QSK60 (Dual) | V16 (x2) | 2984 kW (4000 HP) | Nearly 20,000 Liters | Mine with existing MTU fleets for parts sharing. |
| MTU 12V4000 (Dual) | V12 (x2) | 2984 kW (4000 HP) | Nearly 20,000 Liters | Mines with existing MTU fleets for parts sharing. |
| Electric Drive | High-Voltage AC | 2300 kW to 3000 kW | N/A (Cable Fed) | Mines with strong, cheap electrical grids and low mobility needs. |

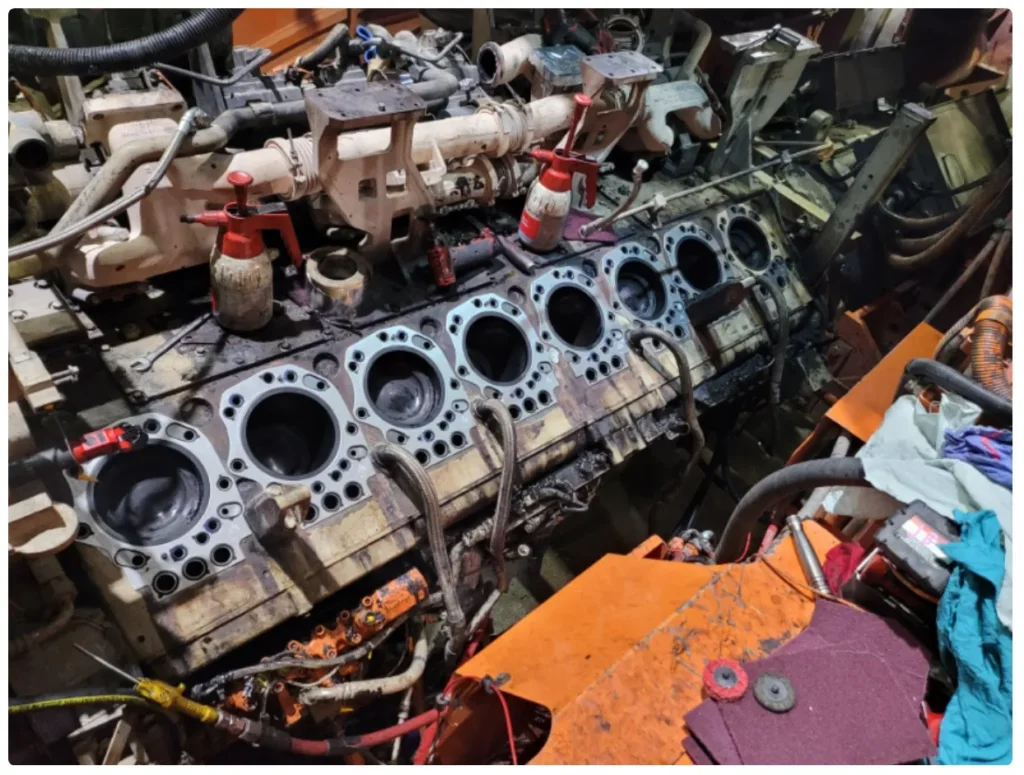

The Liebherr R9800 engine choice often lands on the Cummins QSK60 because it is famous for lasting a long time under heavy stress. However, as we pointed out in our past article, "Cummins QSK60 Engine Overhaul and Maintenance Guide," taking care of the seals and managing the heat on these V16 engines is the only way to keep them running at full horsepower in the dirt and grit of an open-pit mine.
Citify Integration: Maximize Your Heavy-Duty Engine Lifespan
Protecting a massive 4000-horsepower Cummins engine setup starts with mastering fluid dynamics. The extreme heat and dust of an open-pit mine will break down weak lubricants in days, leading directly to catastrophic engine failure.
To understand exactly how high-quality fluids protect your internal engine seals and bearings under heavy load, we highly recommend reading our comprehensive maintenance guide: ➡️ Best Oil for Diesel Engines: 6 Proven Choices to Prevent Catastrophic Wear
Pairing the right oil with premium VPGASKET sealing components is the ultimate defense against unplanned mining downtime.
Liebherr R9800 Hydraulic System Maintenance and Design
The hydraulics are the muscles of the excavator. The Liebherr R9800 has one of the most advanced and highly pressurized systems in the world.
Hydraulic System Data and Maintenance Specs
| Hydraulic Component | Capacity / Spec | Operational Function |
| Total Hydraulic Oil Volume | Nearly 10,000 Liters | Provides smooth, steady fluid power to all cylinders and motors. |
| Main Working Pumps | 10 Variable Flow Pumps | Powers the boom, stick, and bucket digging forces. |
| Swing Pumps | 4 Reversible Pumps | Rotates the 800-ton upper carriage smoothly. |
| Max Working Pressure | Approx. 320 to 350 Bar | Ensures the bucket can rip through solid rock without stalling. |
| Routine Service Interval | Every 1,000 Hours | Reduces downtime by extending the time between fluid changes. |

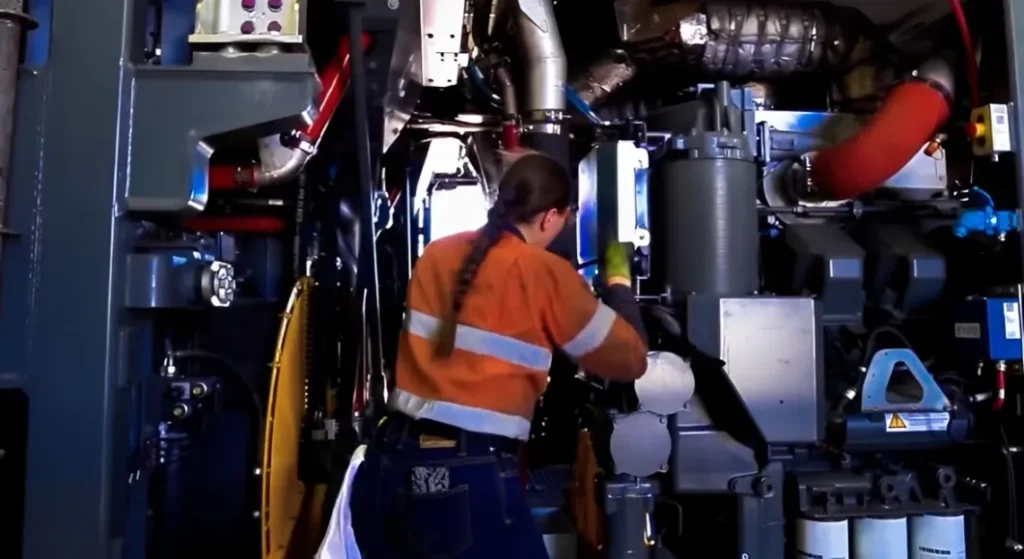

Designed for the Mechanic
Proper Liebherr R9800 hydraulic system maintenance is made easier with wide walkways, easy-to-reach filters, and clearly organized hoses. Because the parts are easy to get to, mechanics can work safely and quickly, keeping the machine out of the shop.
85%
of hydraulic and engine pressure losses in ultra-large excavators originate from minor, neglected seal degradation, which is why strict adherence to the 1,000-hour service interval outlined in the official OEM repair manual is absolutely critical.
Warning
Don't Ignore the Logistics of Size
Buying the Liebherr R9800 is only half the battle; getting it to the mine is a massive headache. You cannot just drive it down the highway. Moving this excavator requires more than a dozen heavy transport trucks. Once the parts arrive at the dirt, it takes hundreds of workers over ten days just to put it together.
Also, fleet matching is critical. If your mine uses smaller 100-ton haul trucks, buying this massive excavator is a huge mistake—it will spill rock everywhere and actually slow your mine down. This machine is a powerhouse, but only if your mine is set up to handle it.
What the Industry Experts Say
People who run mines for a living know that a good excavator isn't just about raw pushing power. It’s about being smooth and steady.
James Holloway — Open-Pit Mining Operations Director
"A great operator knows how to keep the junk rock out of the crusher. The R9800 gives them the precision they need to load the truck right. Good loading speeds up the whole processing plant."
Victor Ramirez — Heavy Equipment Fleet Supervisor
"A fast machine is worthless if it's always in the repair shop. The R9800 is a favorite because it gives us speed, great controls, and it actually stays running day and night."
The Hidden Value: Why Continuous Operation is Everything
Some of the best things about the R9800 aren't listed on the basic sales brochure. Out in the field, mechanics and mine owners care about the "hidden specs."
How easy is it to reach the engine? Is there room to stand while changing a filter? How fast can a broken hose be swapped out? Remember, this machine holds nearly 20,000 liters of fuel and burns through thousands of liters a day. Refueling and servicing have to be incredibly fast.
The true value of this machine is simply "uptime." When an excavator breaks, the trucks park, the crushers run empty, and the mine misses its daily targets. Mine owners are not just buying an 800-ton piece of metal; they are buying a guarantee that the work will not stop.
Securing Your Supply Chain: Why Premium Engine Gaskets Matter
When a machine as important as the Liebherr R9800 breaks down, the financial bleeding starts instantly. One of the best ways to keep that from happening is to protect its massive engines.
If you are running the Cummins QSK60 setup, protecting it from oil leaks, lost coolant, and dropping pressure is your very first line of defense. Using cheap, low-quality seals on an engine that shakes, bakes, and breathes heavy dust all day long is a terrible risk. A $20 gasket failure can easily shut down a multi-million-dollar operation.
This is exactly why smart fleet managers turn to VPGASKET. We specialize in building heavy-duty, OEM-quality gasket kits made specifically for high-horsepower mining engines like the Cummins QSK60. When you use our precision-engineered seals, you prevent oil leaks, keep engine temperatures stable, and avoid sudden breakdowns. By trusting VPGASKET, you make sure your 800-ton giant stays out of the repair shop and stays in the dirt.
Related Products
Contact Us
If you manage a mining fleet, handle heavy-equipment rebuilds, or fix high-horsepower diesel engines for a living, we are here to help. We supply top-tier Cummins QSK60 gasket kits, heavy-duty engine seals, and complete Cummins QSK60 rebuild solutions.
Don't let a bad seal cost you a day of mining. Contact our technical team today to get the exact OEM-grade sealing components you need to keep your heavy equipment running strong.
FAQ
What is the operating weight of the Liebherr R9800?
The Liebherr R9800 weighs over 800 tons, making it one of the largest and heaviest hydraulic mining excavators on the planet.
What engines power the Liebherr R9800?
Most operators choose the dual Cummins 16V QSK60 diesel engines or the MTU 12V4000 series engines, producing around 4000 horsepower total.
What is the Liebherr R9800 bucket capacity?
The standard bucket holds 42 cubic meters of heavy rock. For lighter materials, Liebherr offers a larger 47.5-cubic-meter expanded bucket.
Why is hydraulic maintenance so important on the R9800?
The machine relies on nearly 10,000 liters of hydraulic fluid and multiple high-pressure pumps. Even a tiny seal leak can cause a major pressure drop, stopping the machine and costing the mine thousands of dollars.
