The Proven Strength of the 5.9 Cummins 6BT Engine
The 12 Valve Cummins 6BT engine, produced from 1989 to 1998, holds a legendary status in the diesel world. Widely utilized in Dodge Ram heavy-duty trucks, industrial equipment, and marine propulsion systems, its simple mechanical fuel injection and robust cast-iron block structure allow it to operate under extreme load conditions.
However, "million-mile durability" does not mean zero wear. After 300,000 to 700,000 miles (or roughly 10,000 to 15,000 operating hours in industrial applications), the internal physics of combustion take their toll. Key components such as piston rings, main bearings, and cylinder walls begin to degrade, leading to compression blow-by and oil consumption.
At this critical lifecycle stage, selecting a high-precision 12 Valve Cummins overhaul kit becomes essential. A mathematically correct rebuild does not just restore factory performance; it improves combustion efficiency, stabilizes oil pressure, and resets the engine's lifespan for another half-million miles.
Table of Contents

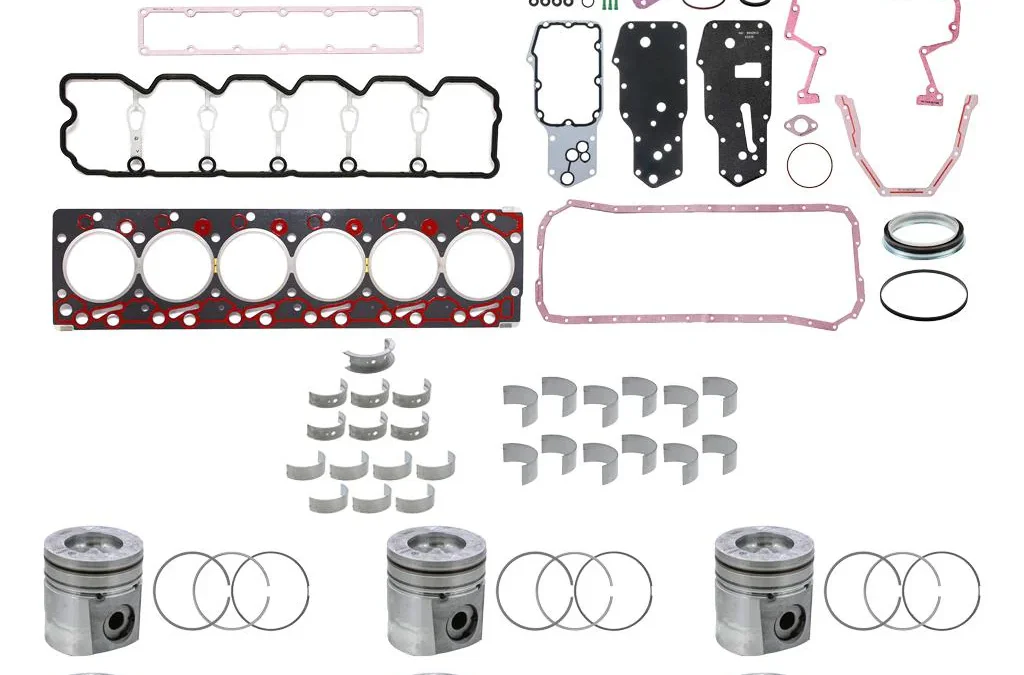

What a Complete 5.9 Cummins Rebuild Kit Includes
A professional 12 Valve Cummins overhaul kit must include both top-end and bottom-end components engineered to strict OEM tolerances. Missing a single critical wear item will compromise the entire restoration. According to heavy-duty rebuild standards, a complete in-frame or out-of-frame kit contains:
Core Internal Components

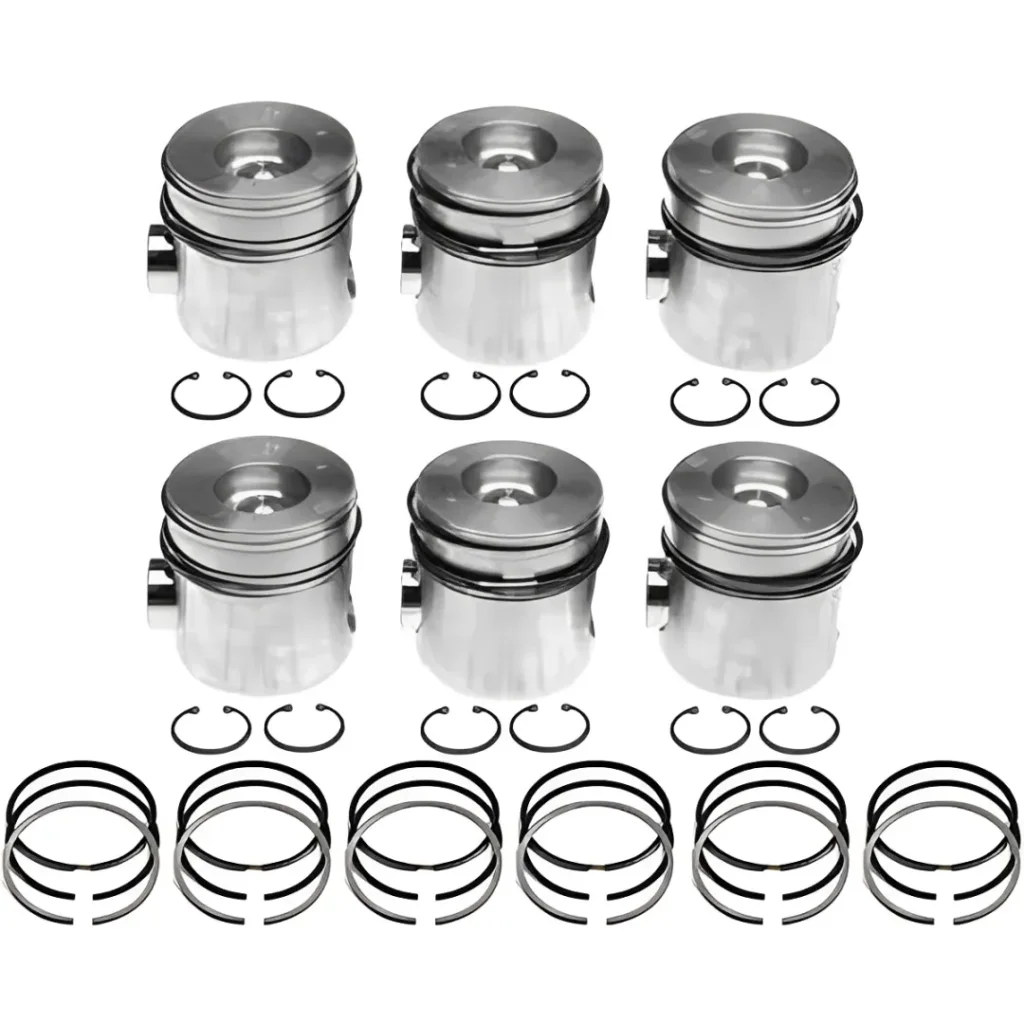

- Pistons: Available in standard or oversized options (e.g., +0.50mm / +1.00mm) with specific bowl designs to match OEM spray angles.
- Piston Rings: High-tensile top rings (often Keystone style), secondary compression rings, and precise oil control rings.
- Cylinder Liners / Sleeves: (If applicable to the specific block machining requirements).
- Bearings: Tri-metal copper-lead main bearings and connecting rod bearings for superior load-carrying capacity.
- Full Gasket Kit: Complete upper head gasket set and lower block sealing set.
🔗 Engineering Insight: The quality of the gaskets in your rebuild kit dictates whether your engine will leak under high boost. To understand the critical differences between standard graphite and modern MLS (Multi-Layer Steel) technologies, we highly recommend reading our detailed [Automobile Engine Gasket Materials & Selection: The Ultimate Technical Guide].
Additional Critical Components
Depending on the extent of the overhaul, an advanced 12 Valve Cummins overhaul kit will also require:
- Camshaft bearings (requires block out-of-frame).
- High-volume oil pump replacements.
- Valvetrain components (guides, springs, seals).
- Injector service and calibration kits to optimize the mechanical P7100 or VE pump delivery.
Compatibility Data: Engines, Trucks, and Applications
The biggest mistake mechanics make is assuming all 6BT engines are identical. To ensure the correct selection of a 12 Valve Cummins overhaul kit, you must verify your engine's CPL (Control Parts List) number, located on the timing housing data plate.
Engine Compatibility Table
| Engine Model & Fuel System | Production Years | Injection Pump Type | Rebuild Notes & Kit Variations |
| 6BT 5.9L (VE Pump) | 1989–1993 | Bosch VE Rotary Pump | Early generation injector spray angles. |
| 6BT 5.9L (P7100) | 1994–1998 | Bosch P7100 Inline Pump | Highest horsepower potential; requires specific piston bowl volume. |
| Marine 6BT (e.g., 370B) | Various | Modified P7100 / Nippondenso | Requires marine-specific lower compression pistons. |
Vehicle & Equipment Application Table
| Brand / Application | Models | Years | Engine Role |
| Dodge Ram | 2500 / 3500 (5.9L Diesel) | 1989–1998 | Towing and daily heavy-duty transport. |
| Freightliner / Ford | F600 / FL60 / Medium-Duty | 1990s | Commercial delivery and utility. |
| Case IH | Tractors / Agricultural | Various | Constant RPM industrial loads. |
Important Insight:
Bore size, piston pin diameter, and piston bowl design must perfectly match your specific CPL number.

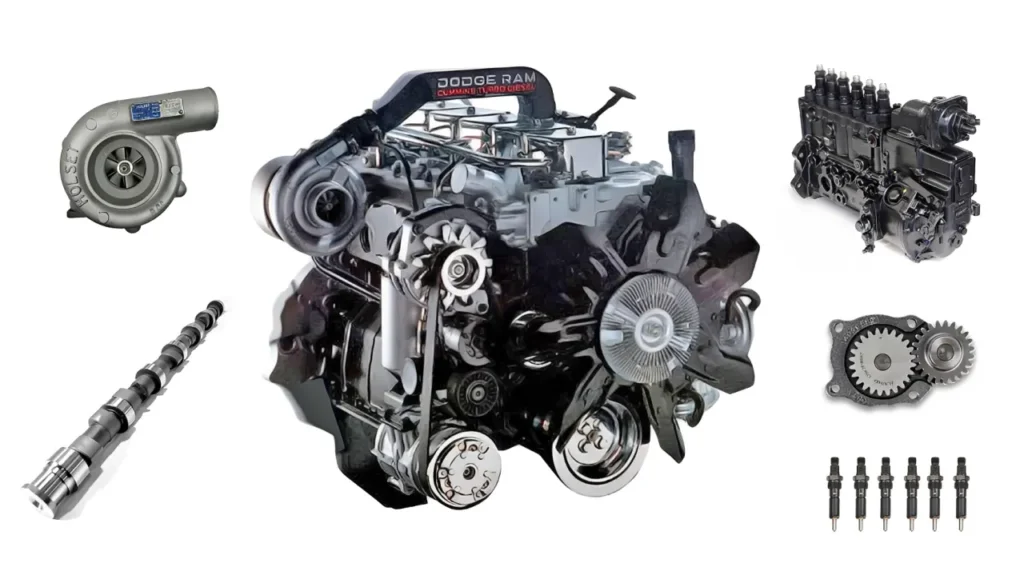

Marine vs. Automotive Rebuild Differences (12v Cummins Marine Overhaul)
The difference between an automotive and a marine 12 Valve Cummins overhaul kit is severe and often underestimated by novice rebuilders.
Automotive Configuration
- Standard piston bowl design for variable RPM driving.
- Engineered for moderate thermal loads with air-to-air intercooling.
- Standard cast-iron and steel alloys.
Marine Configuration
- Corrosion-resistant materials: Specially treated freeze plugs and gaskets to withstand saltwater marine environments.
- Continuous Load Pistons: Marine engines (like the 370 Diamond Series) operate at 90% throttle continuously. They require marine-specific pistons with altered compression ratios to prevent melting under sustained EGTs (Exhaust Gas Temperatures).
Selecting a standard truck kit for a boat will result in early thermal failure. Always specify a true 12V Cummins marine overhaul kit for aquatic applications.
Cummins 6BT Rebuild Specs: Precision Matters
Installing a 12 Valve Cummins overhaul kit is a game of microscopic mathematics. The Cummins 6BT rebuild specs are unforgiving.

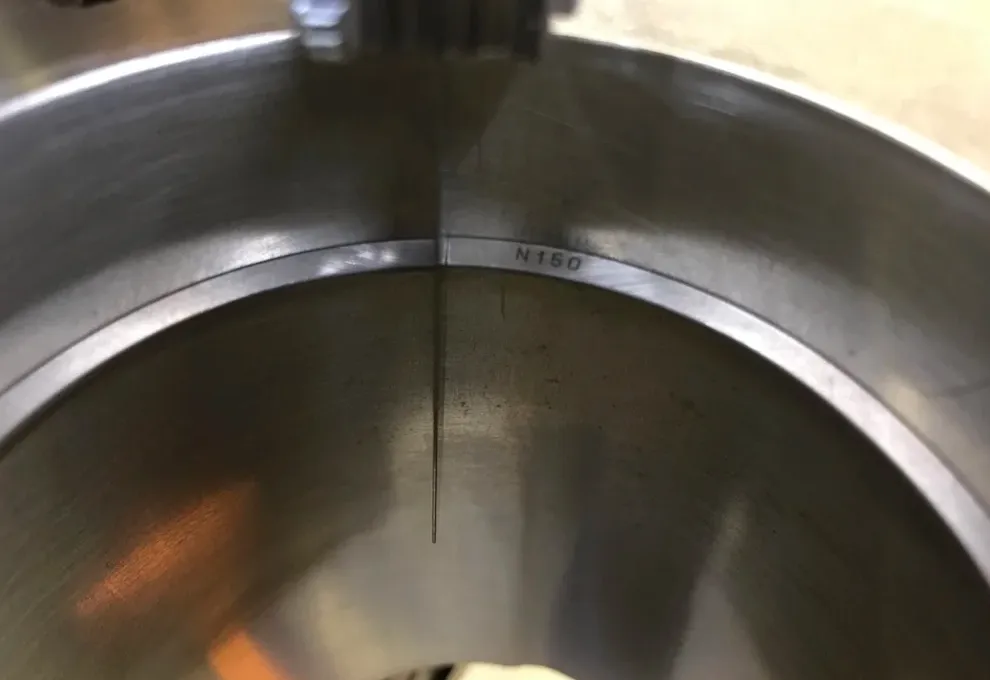

Piston Ring Gap 12v Cummins Data Table
When pushing a 12 Valve beyond stock horsepower, the piston ring gap must be enlarged to accommodate the extreme thermal expansion caused by increased boost pressure. Failing to gap the rings correctly will cause them to butt together, shattering the ring lands.
| Target Boost Pressure | Top Ring Gap | Second Ring Gap | Application Focus |
| 0–20 PSI (Stock) | 0.010 – 0.014 in | 0.012 – 0.016 in | Standard daily driving / towing. |
| 20–35 PSI (Upgraded) | 0.014 – 0.018 in | 0.016 – 0.020 in | Mild tuning / larger turbo. |
| 35+ PSI (Heavy Mod) | 0.018 – 0.024 in | 0.020 – 0.026 in | Standard daily driving/towing. |
Critical Bearing Clearances
- Main Bearing Clearance: 0.0015 – 0.0040 inches.
- Rod Bearing Clearance: 0.0015 – 0.0035 inches.
- Crankshaft End Play: 0.0040 – 0.0170 inches.
What the Industry Experts Say
"The 12 Valve Cummins engine appears incredibly simple in design, but its lower-end tolerance requirements are extremely strict. Even a 0.001-inch deviation in bearing clearance can result in oil pressure instability and long-term engine failure. This is exactly why a premium 12 Valve Cummins overhaul kit focuses just as heavily on bearing quality and tri-metal material layers as they do on piston upgrades."
Senior Diesel Rebuild Technician—Mark Reynolds
Critical Technical Warning: The KDP and Assembly Errors
Failure during a rebuild rarely comes from defective parts; it almost always stems from assembly errors.

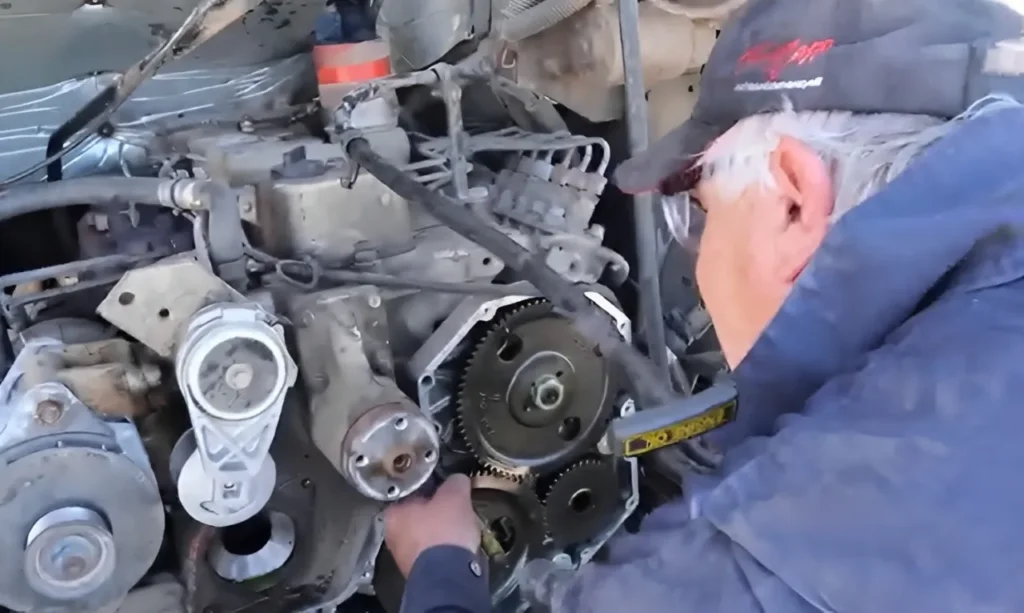

Timing Gear Alignment & The KDP Risk
The infamous "Killer Dowel Pin" (KDP) is a small steel alignment pin pressed into the block near the timing gears. Over time, vibration backs this pin out, dropping it directly into the timing gears and causing immediate piston-to-valve destruction. Any complete 12 Valve Cummins overhaul kit installation must include a KDP "tab" or fix kit to permanently secure this pin.
Furthermore, incorrect alignment of the timing gear marks by even one tooth will lead to catastrophic internal collision upon the first startup.
80%
Of compression loss cases after rebuilding a 12 Valve Cummins engine are caused by improper valve seating or incorrect cylinder block resurfacing before installing the 12 Valve Cummins overhaul kit. —According to official heavy-duty service data,
Key machining rules:
- The cylinder block deck must be checked with a precision straight edge. Maximum allowable warpage is 0.003 inches over a 6-inch span.
- If the block is machined, you must compensate by selecting the correct thickness cylinder head gasket to maintain proper piston-to-valve clearance.
Why Choose VP GASKET 12 Valve Cummins Overhaul Kits
A complete engine rebuild is a high-cost, high-stakes operation. The real financial risk is not the initial purchase price of the kit, but the devastating cost of failure after installation.

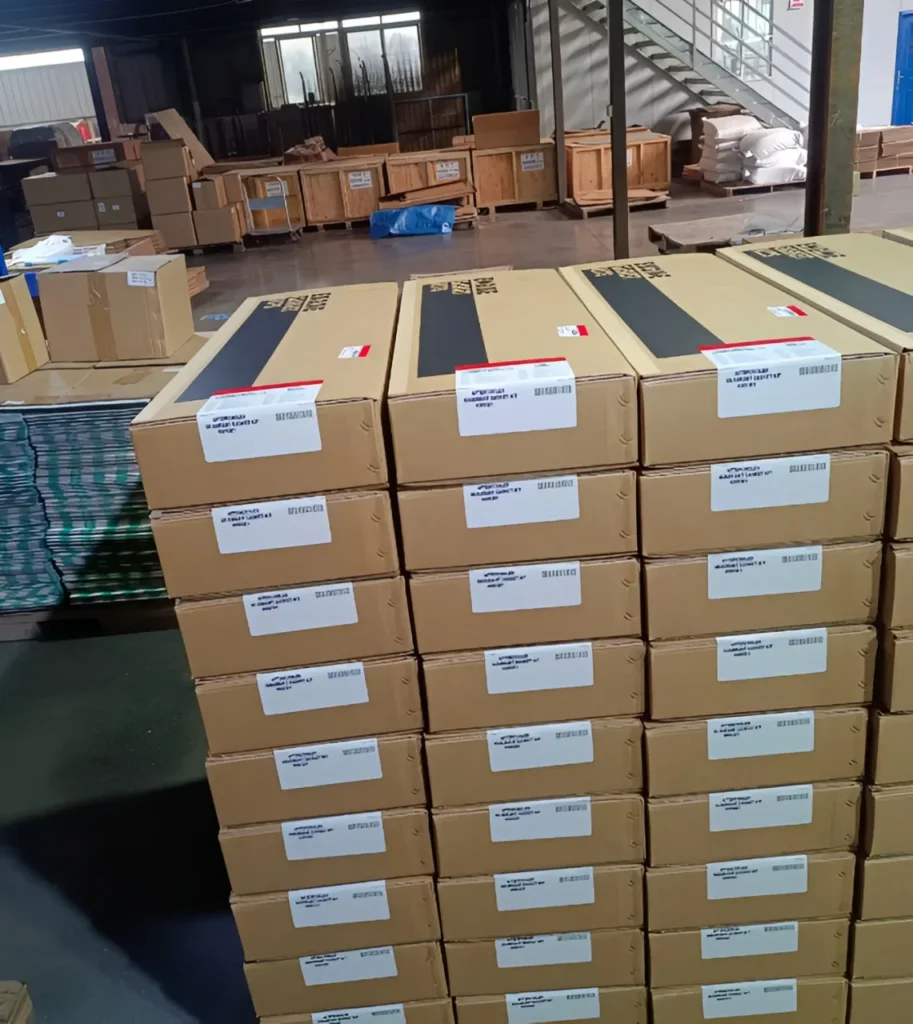

VP GASKET engineers 12 Valve Cummins overhaul kit solutions designed specifically for fleet operators, global parts distributors, and professional rebuilders who cannot afford a comeback.
Our B2B Supply Advantages:
- Uncompromising Tolerances: All pistons, rings, and bearings are machined to exact OEM standard tolerances (±0.02 mm).
- Comprehensive Coverage: We provide exact CPL-matched kits for automotive, industrial, and marine scenarios.
- Material Superiority: Tri-metal bearings, ISO-certified steel, and extreme-heat FKM elastomers in our gasket sets.
Real Customer Outcomes:
Based on post-rebuild fleet data, customers utilizing a VP GASKET 12 Valve Cummins overhaul kit report:
- Static compression restored to a perfect 400+ PSI across all six cylinders.
- Heavy-load oil consumption reduced by over 30%.
- Fuel efficiency improvements of 8–15% due to perfected ring sealing.
The real value of our kit is not just the parts inside the box—it is the guarantee of avoiding a second rebuild.
Contact Us: Start Your 12 Valve Cummins Rebuild Today
Your 6BT engine is a massive long-term asset. A mathematically correct rebuild ensures decades of continued, reliable operation.
Whether you are rebuilding a single Ram 2500 or stocking inventory for a heavy-duty diesel repair network, we are here to support your operation.
- We help you cross-reference your specific engine CPL number.
- We provide exact-fit OEM equivalent parts.
- We offer aggressive wholesale pricing for global B2B distributors.
Secure your premium 12 Valve Cummins overhaul kit today.
FAQ
Can one generic 12 Valve Cummins overhaul kit fit all 6BT engines?
No. Differences in injection systems (VE vs. P7100), piston bowl volumes, and application-specific stress loads (like marine vs. automotive) require an exact kit selected based on your engine's Control Parts List (CPL) number.
What is the most critical measurement during a 6BT rebuild?
While piston ring gap is crucial for high-boost applications, maintaining exact bearing clearances and ensuring the engine block deck is perfectly flat (under 0.003" warpage) are the most critical factors for long-term survival.
How long does a rebuilt 12 Valve 6BT engine last?
： If machined correctly, assembled with a premium 12 Valve Cummins overhaul kit, and maintained properly, a rebuilt 12 Valve can easily exceed another 500,000 miles of highway operation.
Is a marine overhaul kit really different from an automotive truck kit?
Yes. Marine engines operate under extreme, continuous loads. True marine kits utilize lower compression pistons to prevent melting under sustained exhaust gas temperatures, as well as corrosion-resistant core plugs.
Why should I choose a premium 12 Valve Cummins overhaul kit over the cheapest online option?
The cost of labor, machining, and engine downtime far exceeds the price of the parts. Installing cheap, out-of-tolerance pistons or bearings dramatically increases the risk of immediate engine failure, leading to a total financial loss.
