Is there a gasket between the exhaust and the turbo 12vcummins? Yes, absolutely. Whether you are running a classic 12-valve or a modern 6.7L, this seal is non-negotiable.
The Problem: In the world of heavy-duty diesel engines, the turbocharger is the heart of your power. But what happens when the vital seal connecting that turbo to your engine block fails? A Cummins turbo gasket leak is not just a minor annoyance; it is a fatal failure warning. Ignoring it can lead to catastrophic turbo destruction, excessive exhaust temperatures, and massive repair bills.
The Value Preview: This comprehensive 8-point maintenance guide demystifies the risks associated with a failing turbo seal. We will break down exact leak symptoms, replacement costs, crucial installation torque specs, and how to correctly identify an aftermarket replacement for your specific 5.9L or 6.7L engine.
The Reader Benefits: By reading this guide, you will learn how to diagnose a pre-turbo leak before it destroys your equipment, saving you thousands in unnecessary component replacements. Whether you manage a commercial fleet or wrench on your own pickup, you will gain the expert insights needed to keep your boost high and your engine safe.
Estimated reading time: 8 minutes
Table of Contents

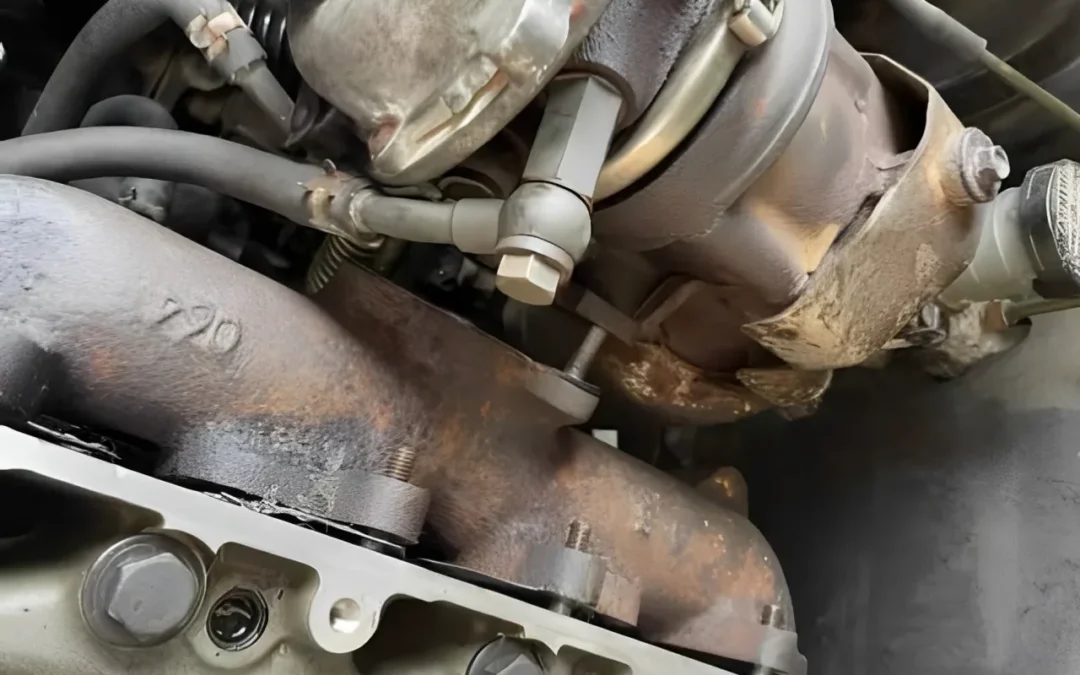

What is a Cummins turbo gasket? (Basic Structure and Function)
At its core, a Cummins turbo gasket is a specialized seal engineered to survive one of the most hostile environments in your vehicle.
The Core Sealing Location of the Cummins Turbo Gasket
This gasket sits directly between the exhaust manifold and the turbocharger's hot side (the turbine). Its sole purpose is to lock in highly pressurized, scorching hot exhaust gases.
Preventing Exhaust Leakage and Boost Loss with a Cummins Turbo Gasket
By maintaining a perfect seal, the Cummins turbo gasket ensures that 100% of the exhaust gas velocity is directed into the turbine wheel. This spins the compressor, which then forces fresh air (boost) into your engine. If this gasket blows out, exhaust escapes before hitting the turbine, instantly killing your boost.
Common Applications for the Cummins Turbo Gasket
These gaskets are mission-critical across the entire heavy-duty lineup, prominently featured on the:
- 6.7L Cummins (Ram 2500/3500 and medium-duty freight)
- 5.9L Cummins (Legendary 12-valve and 24-valve platforms)
- ISX / QSX Series (Class 8 heavy commercial hauling)
VPGasket’s Advantage: VPGasket specializes in advanced diesel engine seals. We utilize multi-layer steel (MLS) and high-temperature graphite composites that drastically exceed standard OEM heat resistance, ensuring your cummins turbo gasket stays sealed under extreme commercial loads.
Comprehensive Analysis
Diagnosing a leak early is the difference between a $50 gasket replacement and a $2,500 turbocharger rebuild. According to official Cummins troubleshooting documentation, symptoms like power loss, overheating, and abnormal noises are directly linked to pre-turbine exhaust leaks.
Cummins Turbo Gasket Leak Symptoms & Impact
| Symptom Observation | Mechanical Cause | Impact on Engine Health |
| Exhaust Noise (Hissing/Whistling) | High-pressure gas escaping through a cracked gasket. | Indicates an active, growing leak; often misdiagnosed as a failing turbo bearing. |
| Power Loss & Insufficient Boost | Exhaust energy bypasses the turbine wheel. | Sluggish acceleration; engine struggles under heavy towing loads. |
| Black Carbon Marks (Soot) | Unburnt exhaust gas staining the surrounding metal. | Visual confirmation of a failed seal. |
| Decreased Fuel Efficiency | ECU over-fuels to compensate for lost boost pressure. | High exhaust gas temperatures (EGTs); potential DPF/EGR clogging. |
Exhaust Noise Caused by a Cummins Turbo Gasket
A failing Cummins turbo gasket will frequently emit a high-pitched hiss or whistle under acceleration, which is often misdiagnosed as turbo bearing failure.
Power Loss and Insufficient Boost from a Cummins turbo gasket
When exhaust gas bypasses the turbine, your engine is starved of the boost it needs, leading to severe sluggishness.
Black Carbon Marks Near the Cummins Turbo Gasket
Visible black soot around the exhaust manifold and turbine flange is the most definitive visual proof of a blowout.
Decreased Fuel Efficiency Due to a Cummins Turbo Gasket
With lower boost, your engine over-fuels to compensate, driving up exhaust temperatures and tanking your MPG.
Diagnostic Tip: Early detection of these cummins turbo gasket leak symptoms can prevent the turbocharger from over-speeding (trying to compensate for the lost pressure), saving the internal bearings from total destruction.

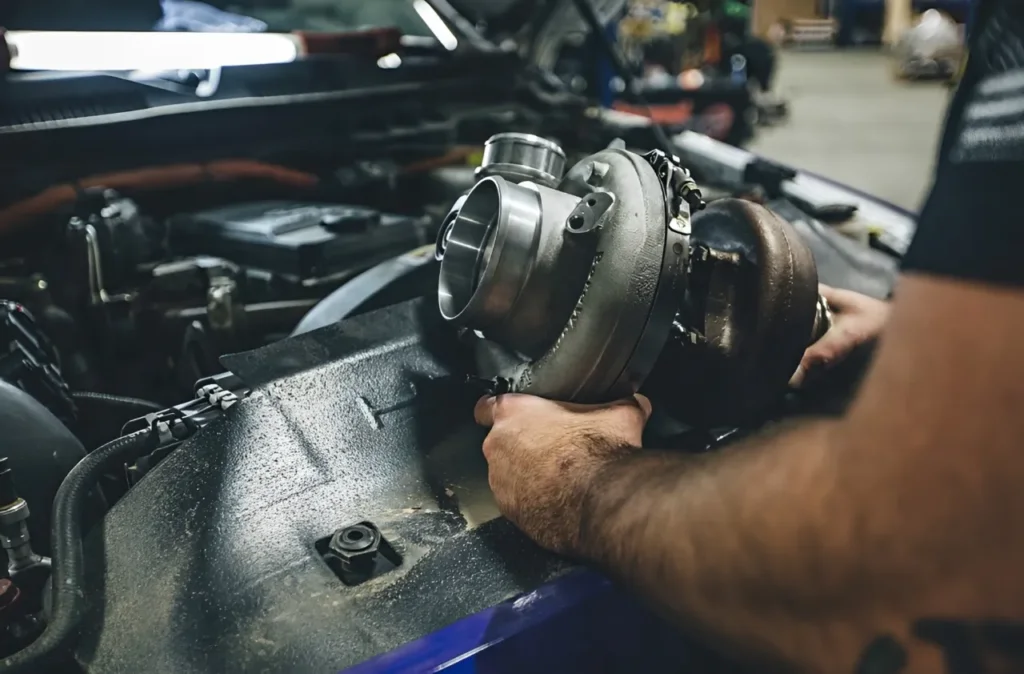

Replacement Cost Guide
If you have confirmed a blowout, you need to budget for the repair. Our Cummins turbo gasket replacement cost guide breaks down what you can expect when heading to the shop.
OEM vs Aftermarket Price Differences
The physical gasket is relatively inexpensive. An OEM Cummins gasket may cost between $30 and $60. High-quality aftermarket options offer equal or superior heat resistance (up to 3000°F for graphite) for a fraction of the dealer price.
Labor Costs
The true cost lies in the labor. Replacing the Cummins turbo gasket usually involves completely removing the turbocharger and, often, the exhaust manifold.
Factors Affecting Costs and Cummins Turbo Gasket Repair Cycles
- Estimated Repair Cycle: 2 to 5 hours of labor.
- Degree of Rust: Heavily rusted or seized bolts can double the labor time.
- Manifold Warpage: If the manifold is warped, it must be machined or replaced simultaneously.
Estimated Cummins turbo gasket Replacement Costs
| Cost Category | Estimated Cost Range (USD) | Determining Factors |
| Parts (Gasket/Hardware) | $30 - $120 | Quality of gasket; requirement for new mounting studs/nuts. |
| Labor (Shop Rate) | $300 - $800+ | Accessibility; severity of rusted components. |
| Total Repair Estimate | $330 - $920+ | Heavily dependent on whether the manifold requires resurfacing. |
VPGasket Advantage: VPGasket provides a highly cost-effective, premium alternative sealing solution. By preventing premature blowouts, our cummins turbo gasket materials significantly reduce your long-term maintenance costs.
installation torque specs
A premium gasket will instantly fail if installed incorrectly. Adhering to the exact Cummins turbo gasket installation torque specs is absolutely mandatory.
Exhaust Manifold and Turbine Flange Alignment for the Cummins turbo gasket
Before tightening, the turbine flange must perfectly mate with the exhaust manifold. Any gap or sandwiching of debris will create an immediate weak point for the Cummins turbo gasket.
Installation Steps Breakdown
- Clean Sealing Surface: Remove all old gasket material, soot, and rust.
- Avoid Sandwich Construction: Never stack gaskets or use liquid sealants on a turbo flange.
- Tighten Diagonally: Thread all bolts by hand, then tighten them in a crisscross, diagonal pattern to ensure the flange pulls down completely evenly.
- Secondary Torque Check: Heat cycle the engine, let it cool, and re-check the torque values.
Installation Torque Principles
| Installation Phase | Best Practice | Risk of Ignoring |
| Preparation | Clean flanges with a wire brush or scraper. | Immediate blow-by and micro-leaks. |
| Fastener Torque | Use a calibrated torque wrench to OEM specs. | Flange distortion or a crushed gasket. |
| Heat Cycling | Recheck torque after the engine reaches operating temp. | Bolts vibrating loose under heavy load. |

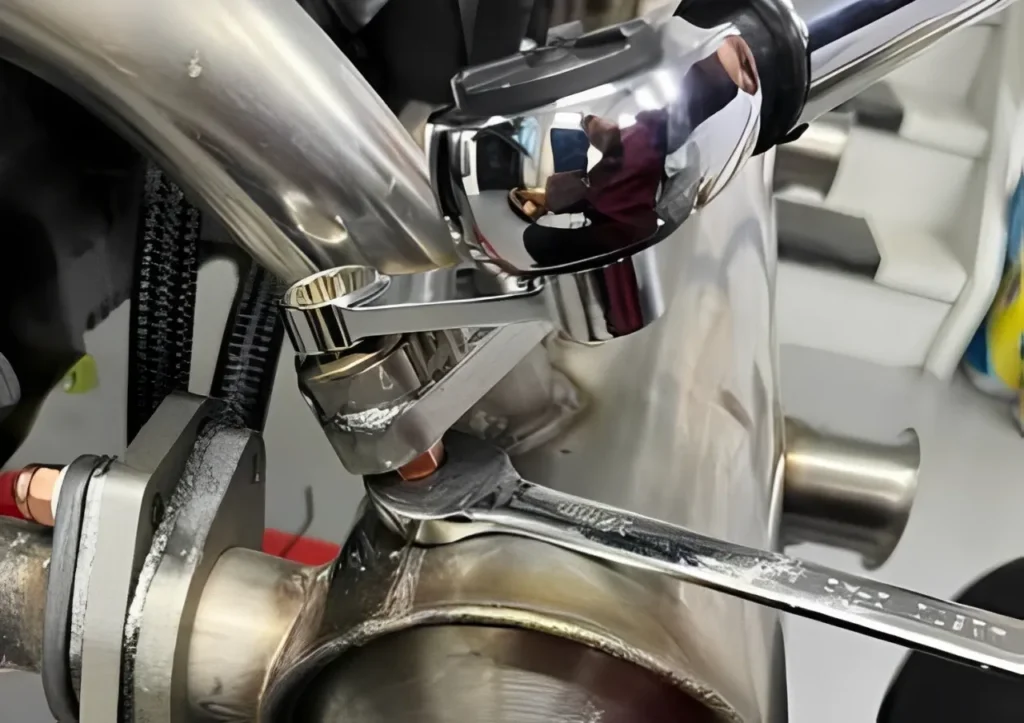

Tool Recommendation: A calibrated torque wrench is essential. Loose bolts cause leaks, while over-tightening can crush the cummins turbo gasket or warp the expensive turbine flange. Always refer to the specific torque values in your OEM service manual.
failure diagnosis for a diesel engine
Before you tear the engine apart, you must be sure the gasket is the problem. Proper Cummins turbo gasket failure diagnosis and diesel engine procedures require a systematic approach.
Pressure Tests and Smoke Detection Methods for the Cummins Turbo Gasket
- Boost Leak Test: Pressurize the intake system with compressed air to listen for escaping air.
- Smoke Testing: Pumping specialized machine smoke into the exhaust system while the engine is off will visually pinpoint exact micro-leaks around the Cummins turbo gasket flange.
Common Misdiagnosis: Turbo vs. Cummins Turbo Gasket Issues
According to Cummins' diagnostic documentation, many "turbo symptoms" actually stem from pre-turbo leaks. Mechanics frequently replace a perfectly good $2,000 turbocharger, only to realize the power loss was caused by a blown $30 Cummins turbo gasket.
Diagnostic Elimination Checklist
| Diagnostic Step | Action | What it Rules Out |
| 1. Visual Inspection | Check for soot marks around the manifold and turbo flange. | Confirm exhaust gas escape before the turbine. |
| 2. Boost Leak Test | Pressurize intake piping. | Rules out blown intercooler boots or cracked intake hoses. |
| 3. Shaft Play Check | Physically inspect the turbo compressor wheel. | Rules out destroyed internal turbo bearings. |
| 4. Back Pressure Test | Monitor exhaust pressure anomalies. | Identifies if the leak is severe enough to kill turbo drive pressure. |
VPGasket Recommendation: Systematic inspection is vastly more important than single-point replacement. Always verify the source of the leak before buying expensive hard parts.

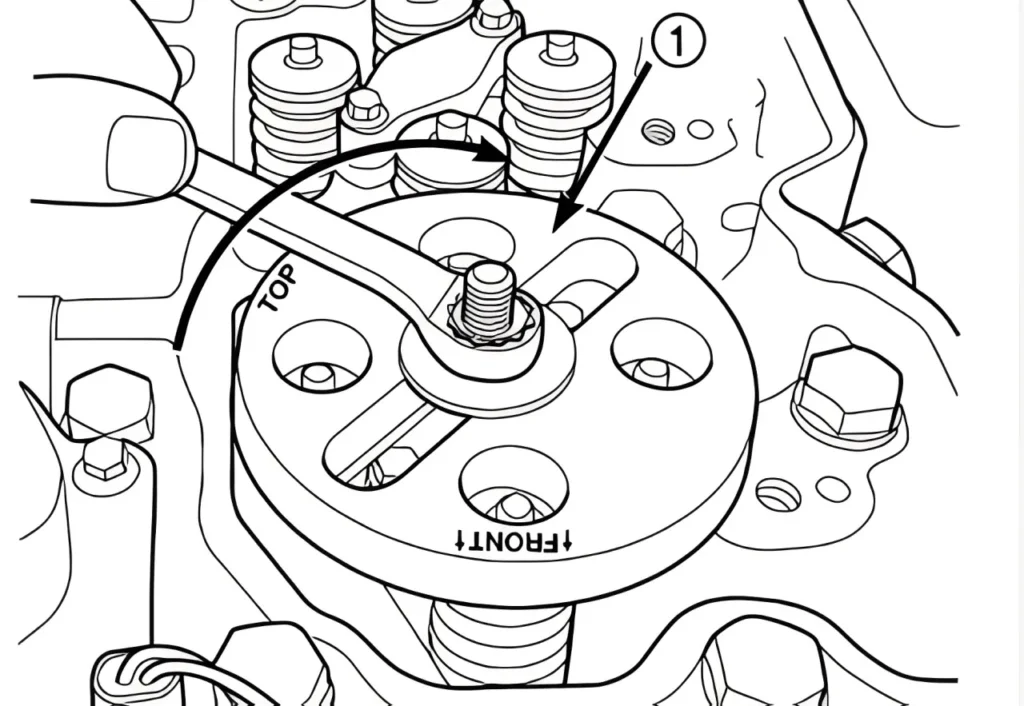

Aftermarket Cummins turbo gasket compatibility 6.7 5.9
Buying the right part is crucial. The aftermarket Cummins turbo gasket compatibility for 6.7 and 5.9 is not universal; you cannot mix and match these components.
6.7 Cummins vs 5.9 Cummins Differences for the Cummins turbo gasket
Public product pages clearly show that the 1998.5–2007 Dodge Ram 5.9L Cummins utilizes a specific T3 turbo gasket kit. The newer 6.7L Cummins models feature entirely different VGT (Variable Geometry Turbo) flanges and require separate, specific Cummins turbo gasket sets.
A Quick Note for 6.7L Cummins Owners: If you are tearing down your exhaust side to replace a blown Cummins turbo gasket, it is the perfect time to evaluate your intake side as well. The 6.7L platform is notorious for a hidden mechanical flaw that can instantly destroy your engine block. Don't miss our must-read warning on the [6.7 Cummins Grid Heater Delete: 3 Vital Warning Signs & The Best Fix] to protect your diesel from the infamous "nut drop" catastrophe.
Material Selection and OEM Matching for the Cummins Turbo Gasket
When verifying compatibility, you must check the engine code, model year, and specific manifold type. Graphite products are commonly advertised to resist up to 3,000°F, while multi-layer steel (MLS) is the standard for heavy-duty applications.
VPGasket Cummins Turbo Gasket Compatibility Quick Reference
| Cummins Engine Platform | Manufacturing Years | Turbo Flange Type | VPGasket Material |
| 5.9L 24-Valve | 1998.5 - 2007 | T3 Standard | High-Temp Graphite / MLS |
| 6.7L ISB | 2007.5 - Present | VGT (Variable Geometry) | Advanced MLS Composite |
| ISX15 / QSX15 | Commercial / Heavy Duty | Heavy Commercial | Reinforced MLS |
VPGasket Advantage: VPGasket covers all mainstream Cummins engine platforms, offering rigorous compatibility verification so you never receive the wrong cummins turbo gasket for your rebuild.
What the Experts Say
To truly understand the stakes, we must look at the engineering reality.
Diesel Turbo System Engineering Expert Commentary:
"A cummins turbo gasket failure often starts as a minor pre-turbo leak, but it can quickly escalate into power loss, high exhaust temperature, and turbocharger inefficiency. Proper material selection is absolutely critical. You cannot put a cheap composite seal in a high-boost environment and expect it to survive."
— Heavy-Duty Turbo Systems Engineer
Operational Warnings
Avoid these critical errors when servicing your turbo system:
❌ Do not reuse old gaskets: Once crushed, a Cummins turbo gasket will never seal properly again.
❌ Unclean surfaces cause immediate leaks: Any rust or old material left on the flange will create a gap.
❌ Overtightening bolts: Excessive force will deform the flange, ruining the expensive turbo housing.
❌ Using incompatible materials: Cheap paper or low-grade rubber will instantly burn under high exhaust temperatures.
⚠ Torque specifications must be used: Always use a calibrated torque wrench during installation.
⚠ Recheck after operation: Heat cycle the engine and visually recheck the leak points on your Cummins turbo gasket.
Real User Reviews
Don't just take our word for it. Here is real industry feedback regarding these failures:
"After replacing the gasket with a cheap parts-store brand, it blew out and leaked again in less than a month. The problem was only permanently solved by switching to a reliable supplier with proper MLS cummins turbo gasket materials."
— North American Diesel Service Technician
"My 6.7 Cummins turbo leak started out as a tiny whistle that I ignored. A few weeks later, the power drop was significant, and I was blowing black smoke under load."
— Heavy-Duty Pickup Truck Owner
"When running a fleet, the key isn't the price of the cummins turbo gasket, but the stability and material heat resistance. We can't afford a truck going down over a $40 seal."
— Commercial Fleet Maintenance Manager
FAQ
Can I continue driving if my Cummins turbo gasket is broken?
Short-distance operation to reach a repair shop is possible, but highly discouraged. Continuing to drive will lead to severely reduced power, abnormal (and dangerous) exhaust temperatures, and potential permanent damage to the turbocharger as it overspeeds to compensate for the leak.
How often should the Cummins turbo gasket be replaced?
There is no fixed mileage interval for replacement. However, it is an absolute industry standard that the Cummins turbo gasket must be replaced every single time the turbocharger is unbolted or disassembled, or immediately if a pre-turbo leak is detected.
Summary
The Cummins turbo gasket is a critical high-temperature, high-pressure seal. A blowout here does not just mean a noisy exhaust; it directly impacts your turbocharger's lifespan and your engine's efficiency. Choosing a stable, high-quality supplier is far more important than saving a few dollars on a cheap part.
VPGasket offers:
- Advanced high-temperature durable sealing materials (Graphite and MLS).
- Precision-compatible solutions for the entire Cummins range (5.9L, 6.7L, ISX).
- Stable, reliable bulk supply capabilities for repair shops and commercial fleets.
Ensure your boost stays where it belongs. Partner with VPGasket for uncompromising heavy-duty Cummins turbo gasket solutions.
